Lyric Pole Piece Laser Flight Cleaning: Precise Control, High Efficiency, Non-destructive

Amid the rapid development of the new energy vehicle industry, battery manufacturing technology continues to evolve, with increasingly stringent requirements for battery pole piece surface cleaning. Lyric's Pole Piece Laser Flight Cleaning technology, with its unique advantages of non-contact, pollution-free, high precision, and low damage, is gradually establishing itself as a crucial component in battery manufacturing. As one of the most promising green cleaning technologies of the 21st century, pole piece laser cleaning technology demonstrates vast application potential in battery pole piece processing and is now extensively integrated into key stages of power battery production, including pole piece manufacturing, cell production, and battery assembly.

In response to the challenges of traditional static cleaning technologies, such as high costs, low efficiency, and difficult maintenance, Lyric has strategically developed the Pole Piece Laser Flight Cleaning process. Through its independently developed high-efficiency Pole Piece Laser Flight Cleaning technology, Lyric has successfully addressed issues like poor process compatibility, low cleaning efficiency, and complex scanning paths encountered in laser cleaning of pole pieces. This innovation provides a new solution for optimizing next-generation battery products.

The core advantages of Pole Piece Laser Flight Cleaning technology lie in its efficiency, stability, and laser utilization. During the cleaning process, the laser beam can move continuously across the material's surface, with positioning and laser output occurring simultaneously, effectively eliminating the non-productive processing time found in traditional static cleaning methods. This not only significantly boosts cleaning efficiency but also ensures a high degree of consistency and reliability throughout the cleaning process.

However, with the continuous introduction of new materials and processes, enhancing the quality and efficiency of laser cleaning, particularly achieving laser scanning synchronized with axis motion in a flight state, has become an urgent challenge. Lyric has conducted in-depth research in this area, continually overcoming key technical difficulties. By optimizing the motion control system, Lyric has not only improved the precision and stability of laser scanning synchronized with axis movement but also ensured cleaning quality while significantly boosting cleaning efficiency.

1.Mastering Core Technology: Building a High-Performance Laser Cleaning System

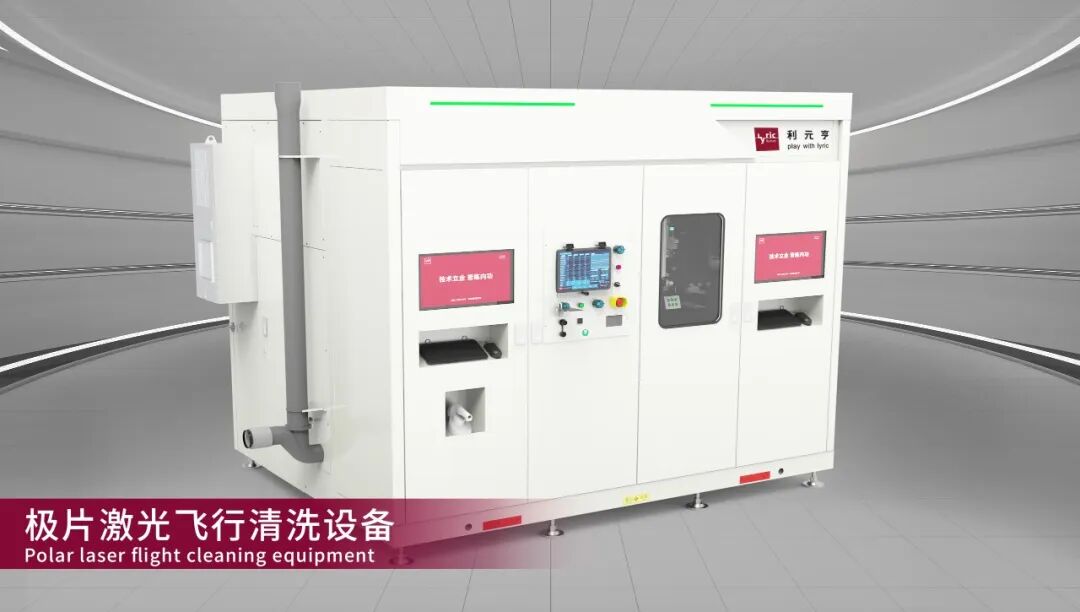

By integrating multiple advanced technologies, Lyric has not only overcome the challenges of cleaning single materials but has also successfully developed a high-efficiency Pole Piece Laser Flight Cleaning technology suitable for various materials. This system comprises three main modules: the laser optical system, the PLC control system, and the flight cleaning fixture. It enables comprehensive, high-stability, continuous, and automated laser cleaning of battery pole pieces. The equipment boasts exceptional performance, ensuring no residue, pinhole transmission, damage, wrinkles, or over-cleaning/under-cleaning issues, with a 100% detection rate. The single-slot cleaning time has been reduced from 0.8 seconds to 0.6 seconds, and the web speed reaches or exceeds 12 meters per minute. This technology significantly broadens the application scope of laser cleaning, effectively meeting customers' comprehensive needs in production processes, manufacturing quality, and cost control. Currently, Lyric has achieved fully automated flight cleaning of pole pieces for various battery specifications, ensuring that the cleaned products fully meet high industrial standards.

Laser Research and Development: The optimization of the laser and optical transmission system ensures stable output of laser beam quality and energy. The universal control interface supports a wide frequency range and offers various pulse width options, with online modification capabilities. The first pulse is readily available, and the shaped laser spot, along with high beam quality, guarantees high quality and efficiency of the produced products. The air-cooling design is efficient, convenient, and quick to install, reducing maintenance costs.

Galvanometer Scanning System: By optimizing the stability of the laser optical system, the stability and reliability of the entire system are ensured. It achieves the widest field of view and longer focal lengths. Controlled by the 20-bit SL2-100 protocol or the 16-bit XY2-100 protocol, the digital PWM output stage significantly reduces power consumption and heat generation. The system's fast dynamic response and high speed enhance production efficiency, with outstanding dynamic performance, fast speeds, and comprehensive functionality.

Flight Cleaning Fixture: The unique fastening method and optimized design ensure material stability and damage-free cleaning during the process. The rotating cleaning fixture design addresses the cleaning challenges of complex-shaped components, significantly improving cleaning efficiency. Optional cooling methods, including water cooling, oil cooling, or air cooling, ensure product quality. The structure is reasonably laid out, greatly reducing the overall footprint of the equipment. The detachable design allows for easy replacement and efficient, quick cleaning, maintenance, and upkeep.

Laser Control System: The self-developed laser flight cleaning trajectory control algorithm ensures the consistency of deep cleaning. Real-time monitoring and dynamic adjustment methods during the cleaning process guarantee the stability and uniformity of the cleaning effect. The PLC control system works in tandem with the laser control system to ensure equipment precision. The proprietary soft control algorithm allows for customized cleaning slots and precise control of tracking trajectories.

2.Efficient Dust Removal Solution: Ensuring Ultimate Cleanliness and Safety

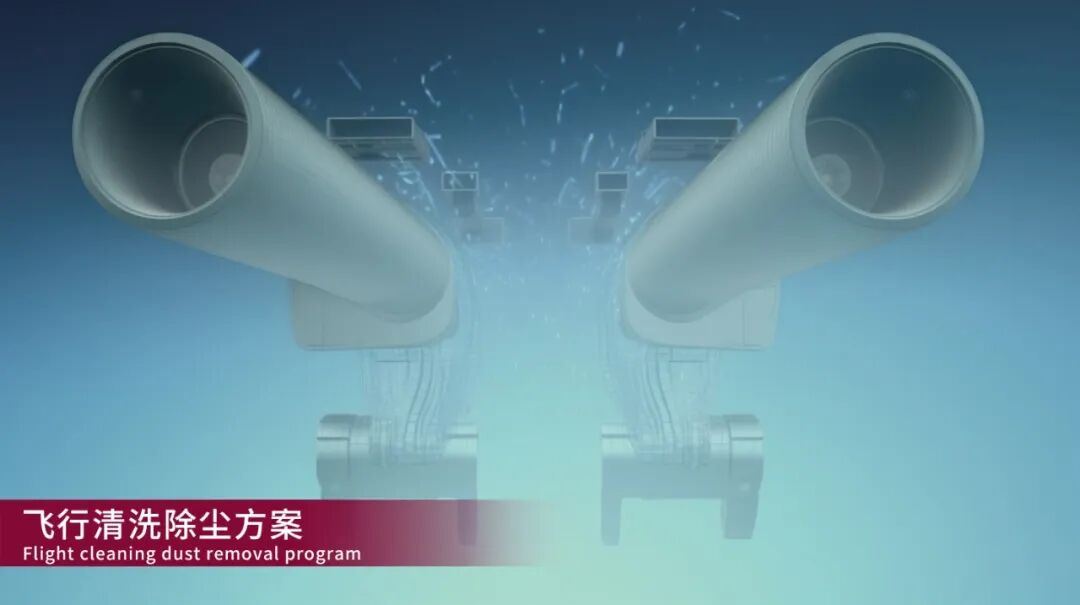

Lyric's efficient dust removal solution adopts a ventilation and exhaust principle to eliminate free-floating dust particles in the air. The solution is equipped with an adjustable dust removal system, allowing users to freely adjust the airflow speed and angle based on the specific environmental conditions on-site, ensuring optimal dust removal performance. By utilizing fluid analysis tools for the DOE (Design of Experiments) of key factors, the solution effectively addresses issues such as debris and residue encountered during production. Verified results show that this dust removal solution can achieve a surface cleanliness level of over 99.9% after cleaning, significantly enhancing operational safety.

In the face of industry changes, Lyric has demonstrated exceptional adaptability and innovation, accurately seizing the key opportunities driven by the application of new materials to upgrade equipment. Leveraging its strong R&D capabilities and keen market insights, the company has made decisive progress in the field of innovative flight cleaning technology. This has not only significantly improved customers' production line efficiency but also strengthened their cost competitiveness.

In the future, Lyric will continue to lead the development trend of laser technology and intelligent equipment for lithium batteries. By increasing investment in R&D and expanding market coverage, the company will further accumulate experience and technology, aiming to create more cutting-edge technologies and processes with industry impact, and provide customers with more efficient and valuable solutions.
